    620173
отпечатай информацията за продукта
470,00 лв.

ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч
ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч-1 ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч-2 ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч-3 ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч-4 ВЕЛО ДВИГАТЕЛ /ДВИГАТЕЛ ЗА ВЕЛОСИПЕД/ Zeda-4T49PL 50 4Т К-Т (49 ксм / бутало 41.8мм x 36мм ход) - До 51км/ч-5
https://www.youtube.com/watch?v=IVi4I0_2G6g

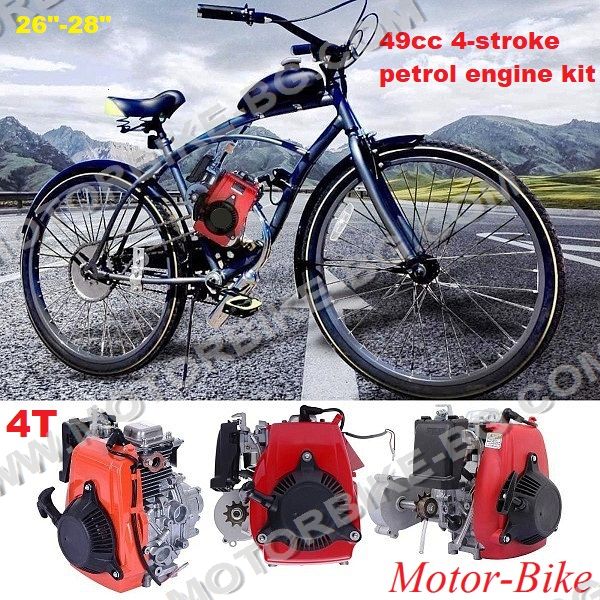

ENGINE FOR A BICYCLE Zeda-4T49PL - 142F 50 4T (49cc)

Features:
Zeda 49cc 4 stroke pull start petrol conversion kit fits for normal 28” V frame bike and 26” ATV bike , both with 28-40mm frame tube.
49cc 4 stroke pull start petrol conversion kit are more stable, more reliable and quieter than the 2 stroke rivals.This bike motor kit comes with everything that you will need, except gas and oil! You will be able to stop or start the engine as you ride.
Fuel consumption: 2 litre fuel per 100km.
With 44 tooth 9 hole sprocket, this motor is with max speed 43-51 Km/h (Depending on bike size, load and road conditions).
Comes with all needed hardware for easy installation.

Specifications:
1. Engine Model: 142F
2. Engine Type: Air-cooled, 4-Stroke, OHV, single cylinder
3. Bore x Stroke: 41.8 x 36 mm
4. Displacement: 49 cm3
5. Compression Ratio: 8.0 : 1
6. Net Power Output: 1.6kW (2.1HP) at 7,000 rpm
7. Net Torque: 2.7 Nm at 4,500 rpm
8. PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
9. Ignition System: Transistorized magneto ignition
10. Starting System: Recoil Starter
11. Carburetor: Float Type
12. Lubrication System: Forced Splash
13. Governor System: Centrifugal Mechanical
14. Oil Capacity (for luburati oil): 0.25l
15. Engine oil: SAE 10W30 / 10W40
16. Fuel Tank Capacity (liter): 1,89l
17. Fuel type: regular unleaded petrol
18. Air Cleaner: Semi-dry Type
19. Throtle: Twist-Grip
20. Clutch: automatic centrifugal
21. Gearbox: Lowering reduction gearbox
22. Transmission: chain drive

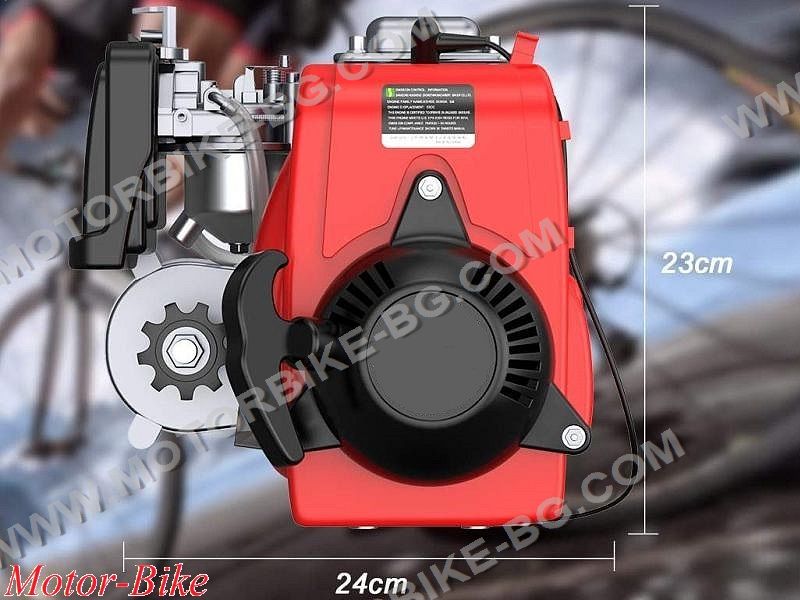

23. Dimensions: (L x W x H) 225mm x 274mm x 353mm
24. Engine dry weight: 5.5 kg
25. Net set weight: 13 kg
26. Gross set weight: 14.5kg

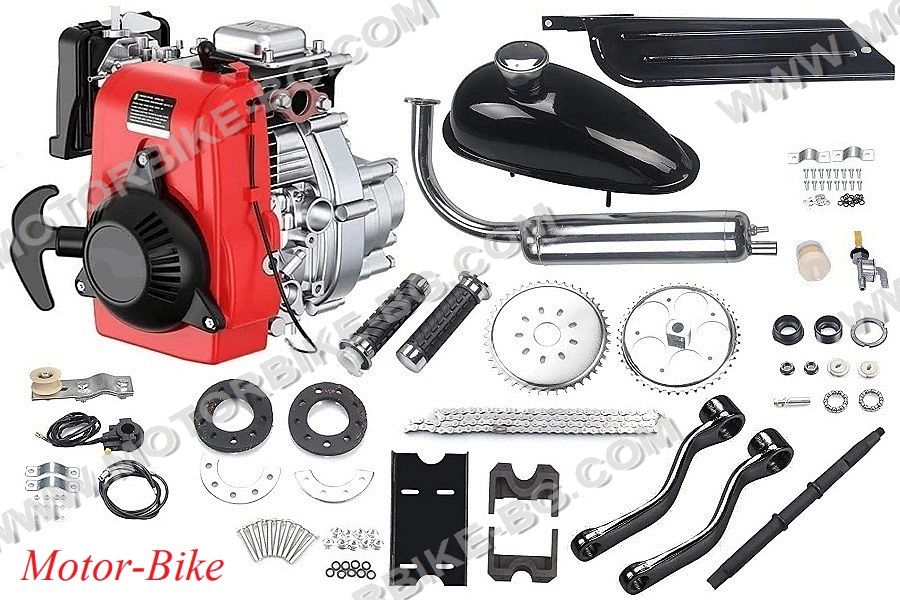

Package included:
1x 49cc 4 stroke engine
1x Gas tank (1.89L), gasoline fuel line
1x fuel filter
1x Adjustable chain idler
1x 44 tooth 9 hole sprocket
1x Chain guard
1x Extra wide crank/sprocket
1x Fiber sprocket mounting rings, 9 sprocket bolts, 3 metal retaining segments
1x Engine Mounting plate with universal mounting brackets
1x Spark Plug Wrench
1x Misc.mounting bolts with nuts
1x 415 chain
1x Twist grip throttle with built-in kill switch
1x Adjustable throttle cable
1x Silencer

Note:
Installation instruction not included.
It is recommended to find a professional to install or refer to videos by searching "49cc bike motor installation".
Examples:
https://www.youtube.com/watch?v=5ADjEgJnE2I
https://www.youtube.com/watch?v=Xb__JyAeahw
https://www.youtube.com/watch?v=IVi4I0_2G6g

Произход: Китай

Доставно тегло: 14,500 кг
