    | Резервни части за скутери и мотоциклети / Motorcycles & scooters products, spare parts | Симсон / Simson | Двигател / Engine | Цилиндри / Cylinders | S-51 - Engine M541 (S-51, S-53, S-60, S-70, S-83, SR50, SR80, SD50, Schwalbe KR51/2, S.050TS/SC)
    260814
300,00 лв. 153,39 €
СИМСОН ЦИЛИНДЪР S51 50ксм 38мм 12мм бутален болт с един сегмент НИКАСИЛ К-Т MEGU (MZA)
SIMSON ML-MEGU Aluminum (nikasil - NPC coating) cylinder set 50cc 5.1HP 2T AC Ø38.00mm (Stroke of the piston: 44mm / Bore diameter: 38mm / inlet: 16.5mm / 2-channel)
About MEGU:
Since the 1950s, MEGU pistons and other cast components have been used in almost all vehicles produced in East Germany (GDR). Following its nationalization in 1948, VEB Metallgusswerk Leipzig (MEGU) began producing a wide variety of goods, including pistons for two- and four-stroke engines, cast iron, steel castings, and foundry sand. MEGU supplied metal castings to the automotive industry in East Germany.
The ML MEGU brand still stands today for high-quality, durable pistons, cylinders, crankshafts, and other cast products.

Description:
ML-MEGU Aluminum (nikasil) cylinder ceries with NPC coating.
All-aluminum (nikasil - NPC coating) 2-channel cylinder 5.1HP.
- Cylinder diameter: Ø 38 mm.
- Stroke of the piston: L - 44mm.
- With bridge in the intake.
- Cylinder liner diameter: Ø 46 mm.
- Inlet: Ø 16.5mm
Optimal heat dissipation and high thermal resistance.
Reduced weight.
High mileage thanks to NPC-coated running surface.
Significantly reduced friction and short break-in time.
Optimal smooth running when using ML-MEGU pistons with steel rings and the specified (NC) marking.
High performance and fuel efficiency.
Marking with ML-MEGU brand, displacement, maximum speed, and part number cast or stamped.
Installation clearance according to manufacturer's specifications when using ML-Megu pistons with the (NC) marking.
Original valve timing and performance figures.
Standard cylinder heads compatible.
Suitable cylinder head 50972-A-MS.

Application:
Simson MS50, and also fits to S51, S53, SR50, KR51/2

Operation:
For the first 200 km, a 1:33 fuel/oil mixture should be used for break-in to prevent damage to the cylinder and piston during the break-in period. We recommend using ADDINOL 2-stroke quality oils.

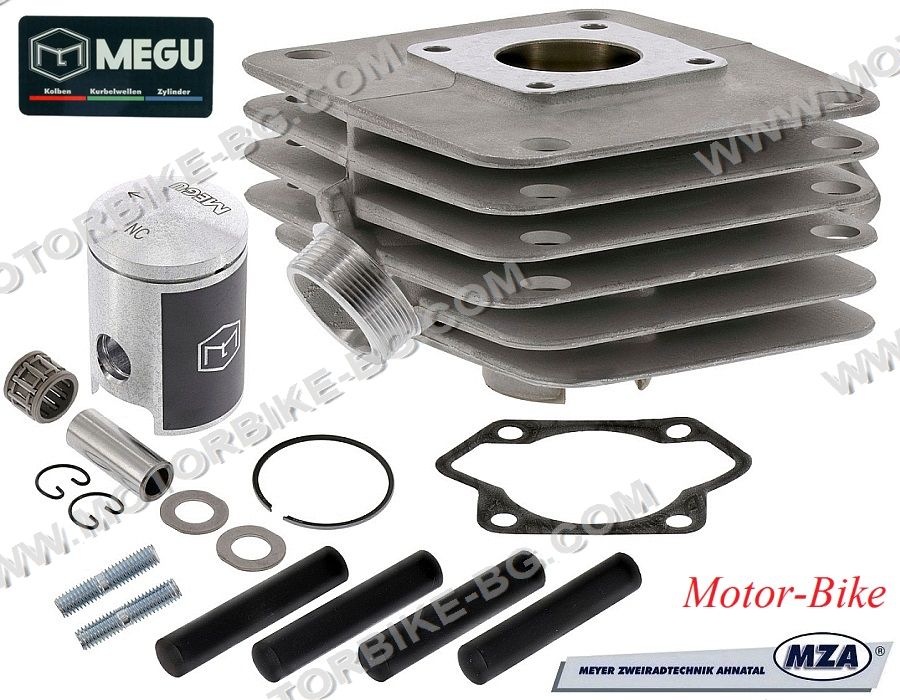

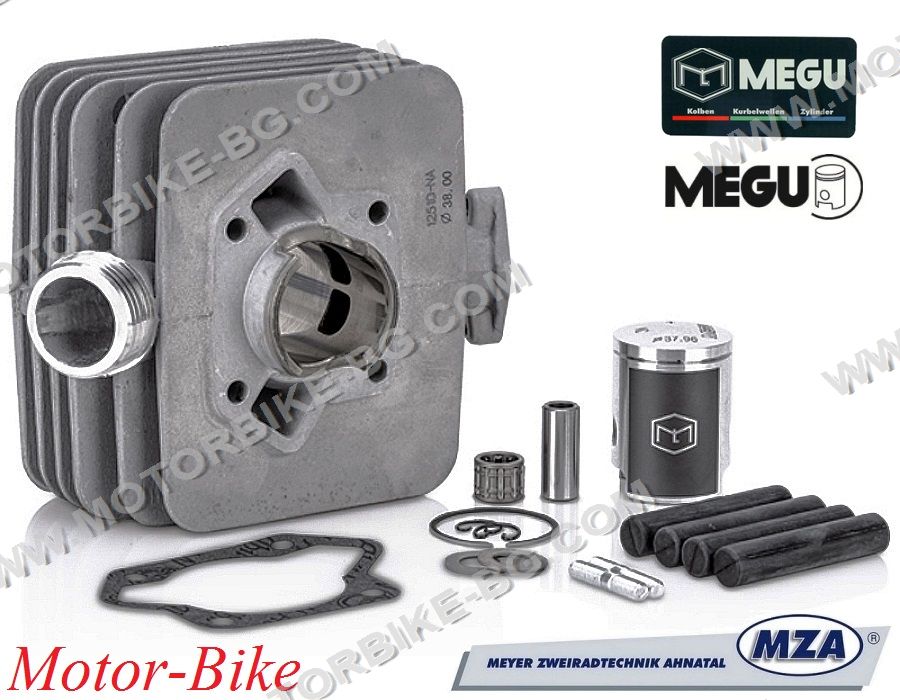

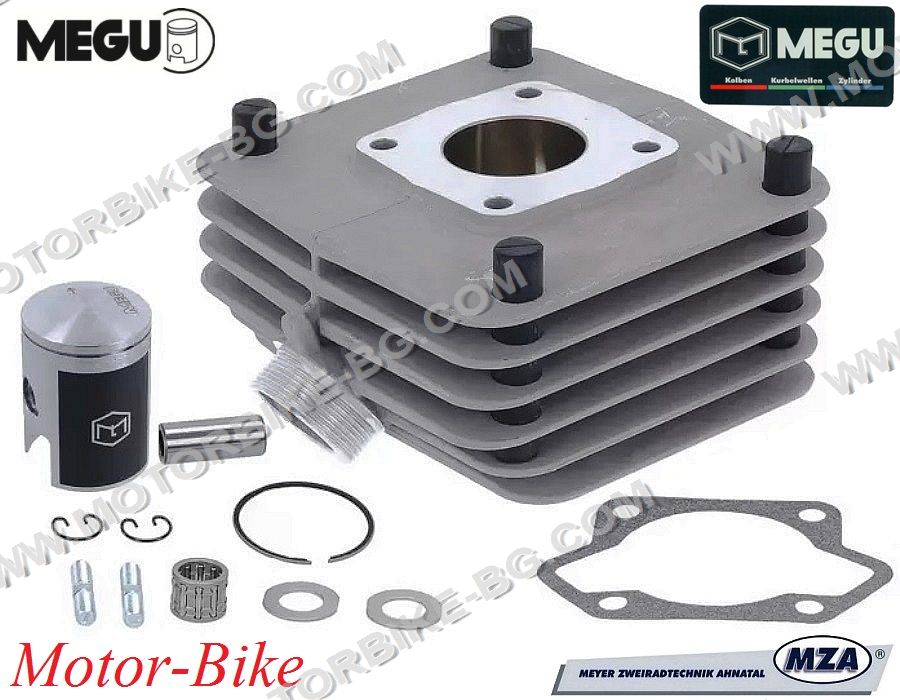

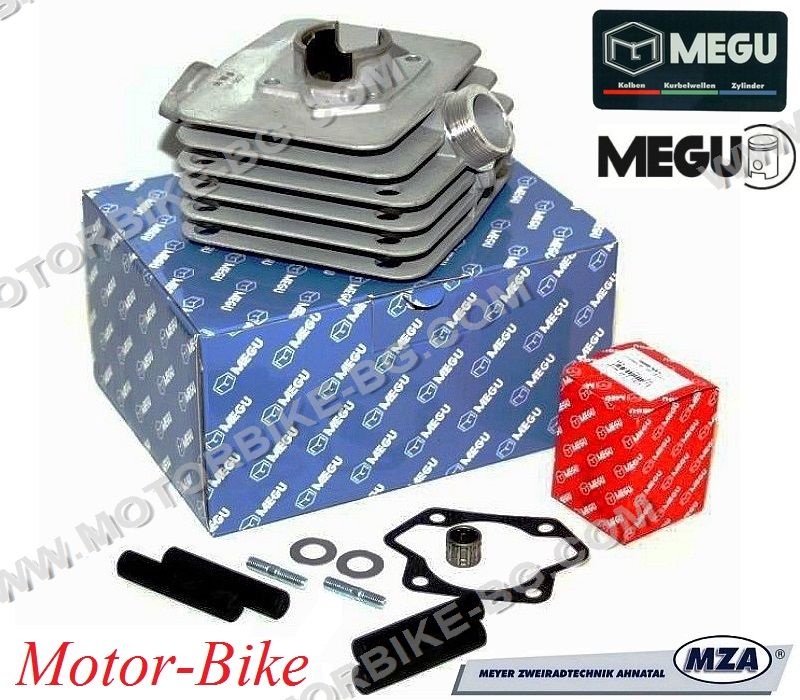

Contents:
1 x 50cc nikasil cylinder MEGU (5.1 hp)
1 x 37.96mm MEGU NC piston (for 1-piston ring)
1 x piston pin
1 x 38.00mm / 1.0mm piston ring
2 x piston pin circlips
2 x 1.0mm thrust washers
4 x damping rubbers
1 x cylinder base gasket
2 x carburetor studs
1 x piston pin needle bearing

Important Notes:
- To ensure high durability and a long service life for ML-MEGU products, the break-in instructions must be followed.
- Before installing a new ML-MEGU piston, check the piston ring gap. The specified gap is approximately 0.2–0.3 mm.
- When installing the piston, ensure the circlips are seated correctly; otherwise, the piston, cylinder, and crankshaft will be irreparably damaged.

Meyer Zweiradtechnik Ahnatal - MZA GmbH
