    540830
45,00 лв.
КАРБУРАТОР ЗА ПИАДЖО CIAO НОВ МОДЕЛ

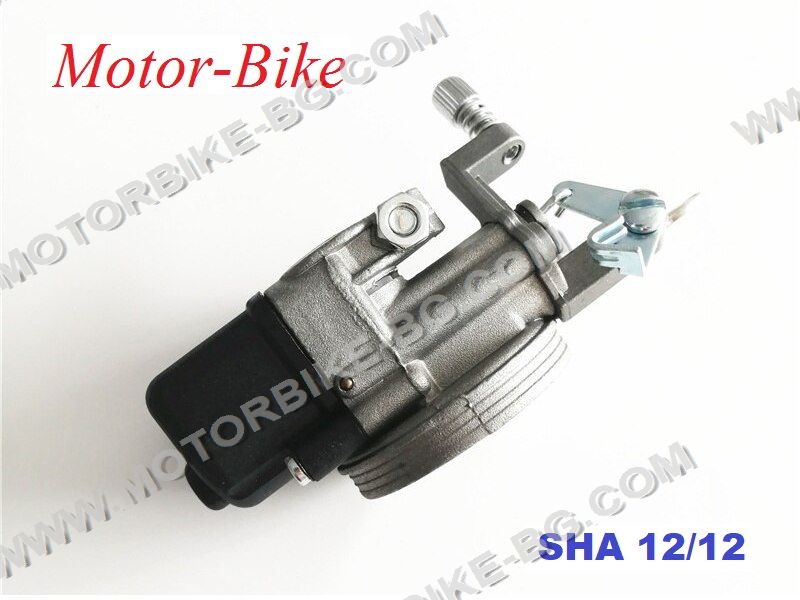

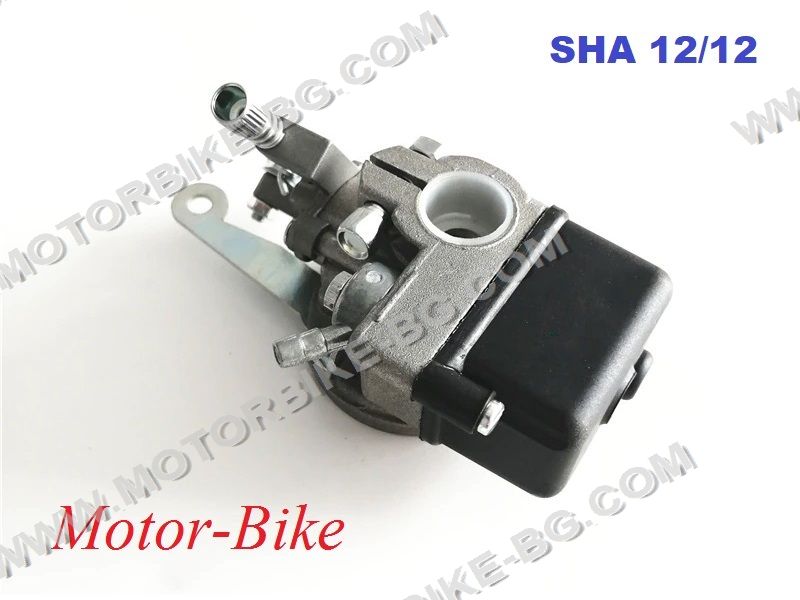

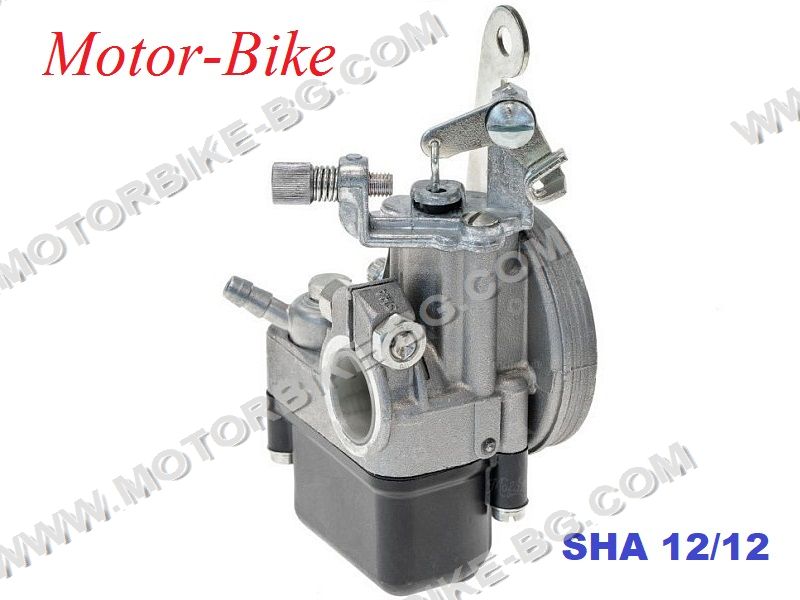

Сarburettor KEN-TSE SHA 12/12 (DELLORTO TYPE)
The 12/12 SHA carburettor impresses with its compact design and fits your Piaggio Si, Boss and Grillo mopeds.
The tuning carburettor has a manually operated choke / start slide. The choke flap snaps into place when you press it down and is only returned to its original position when the throttle cable is operated (full throttle).
Description:
Carburetor Type: SHA Type 3 (SHA3)
Main jet size (M5): 66
Connection diameter intake manifold: 16 mm (or 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.7 mm
Ø passage on the air filter side: 12 mm
Ø passage on the suction side: 12 mm
Overall height: 117mm
Total length: 55mm
Total width: 62mm
Application list:
Gilera EC 1
Piaggio AL / ALX
Piaggio Boss / Bravo / Boxer / Grillo
Piaggio Ciao
Piaggio NLX
Piaggio Si
Piaggio Velofax VTAC02
Piaggio Vespa Citta
Piaggio Vespino
